- Glass & Coatings - The lens was made with Optical Quartz(Optical Silica), ion-assisted fully multi-coatings, and up to 92% light transmission, provides excellent color fidelity, brightness, clarity, and detail resolution in most environments
- Construction & Technology - Constructed with 6061 T6 aircraft-grade aluminum alloy for a stable, durable, and lightweight structure. Matte black anodized finish enhances appearance and wear resistance. Nitrogen filling prevents fogging, the mature design and assembly processes ensure excellent shock resistance and waterproof performance
- Main Parameters - Offers parallax adjustment down to 10 yards, 80 MOA of elevation/windage travel, 34 mm Tube and red illuminated etched glass FFP reticle, 96 mm long eye relief, wide field of view 38.2-6.3 feet (@100yds), and 1/10 MIL precision turret adjustment
- Zero Reset Turret - Featuring capped quick-reset turrets with stretch lockdown, finger adjustable with MIL crisp audible clicks that will be able to quickly reset to zero after sighting in
- Our TD series offers exceptional value. Whether you need a reliable shooting partner or want to upgrade your optics, it will be an excellent choice

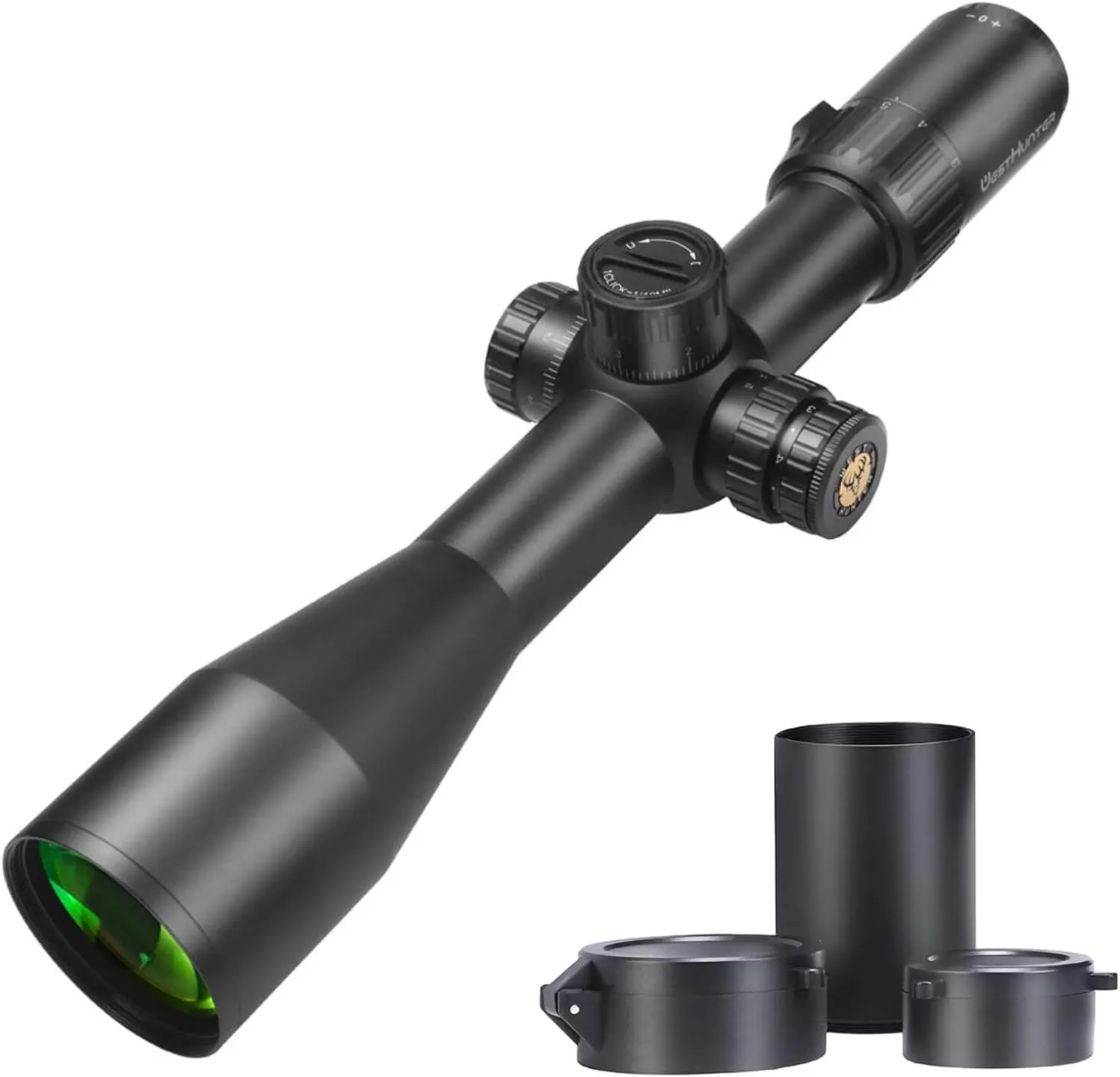

The TD series Riflescope is the latest high-end product launched by Westhunter in 2022. It is a high-performance optics, suitable for large caliber(.308 to .50), used for long-range precision shooting, hunting and competition
Specifications:
Brand: WestHunter
Model: TD 3-18x50 SFIR FFP
Magnification: 3x-18x
Objective Lens Diameter: 50 mm / 1.97 in
Objective Diameter: 64 mm / 2.5 in
Eyepiece Lens Diameter: 35 mm / 1.38 in
Eyepiece Diameter: 44 mm / 1.73 in
Illumination: Red(CR2032 battery is not included in the package)
Tube Diameter: 34 mm / 1.34 in
Diopter Adjustment: - 2.0 / 2.0
Exit Pupil: 8 mm - 2.8 mm
Standard Click Value for E/W: 1/10 MIL
Total Travel Elevation (@ 100 yds): 40 MOA
Total Travel Windage (@ 100 yds): 40 MOA
Parallax Adjustment: 10yds to Infinity
Eye Relief: 96-95 mm (3.78- 3.74 in)
Field of View: 38.2-6.3@100yds(ft) Length: 344 mm / 13.54 in
Net Weight of Optics: 823 g / 29.03 oz
Surface Treatment: Anodizing
Fast Focus Eyepiece: Yes
Sealing Gas Used: Nitrogen
Range of Function temperature (Unit can still be operated): -25°C/ 55°C
Storage temperature: -40°C to 85°C
Range of Dioptric compensation /- dpt: 2
Permissible backlash Dioptric Compensation: <0.25dpt
Straightening of the Reticle: ±2°
Coating: Fully Multi-Coated(FMC)
