- M12 8-pin X-coded Ethernet extension cable adapter for Cognex DataMan 260 280 380 370 470 580 reader and In-Sight 2800 3800 2000 9000 8000 7000 Gen2 vision sensor, 3D-L4000 D900, for Kathrein RRU 7700 4000 reader, for Basler Baumer image processing vision sensor
- M12 Ethernet extension cable for Keyence IV3 sensor and SR-5000 barcode reader, for Datalogic matrix 220 320 reader, for Microscan HAWK MV-4000 camera, for SICK sensor gigabit network, for Triton, for Zebra FXR90 reader

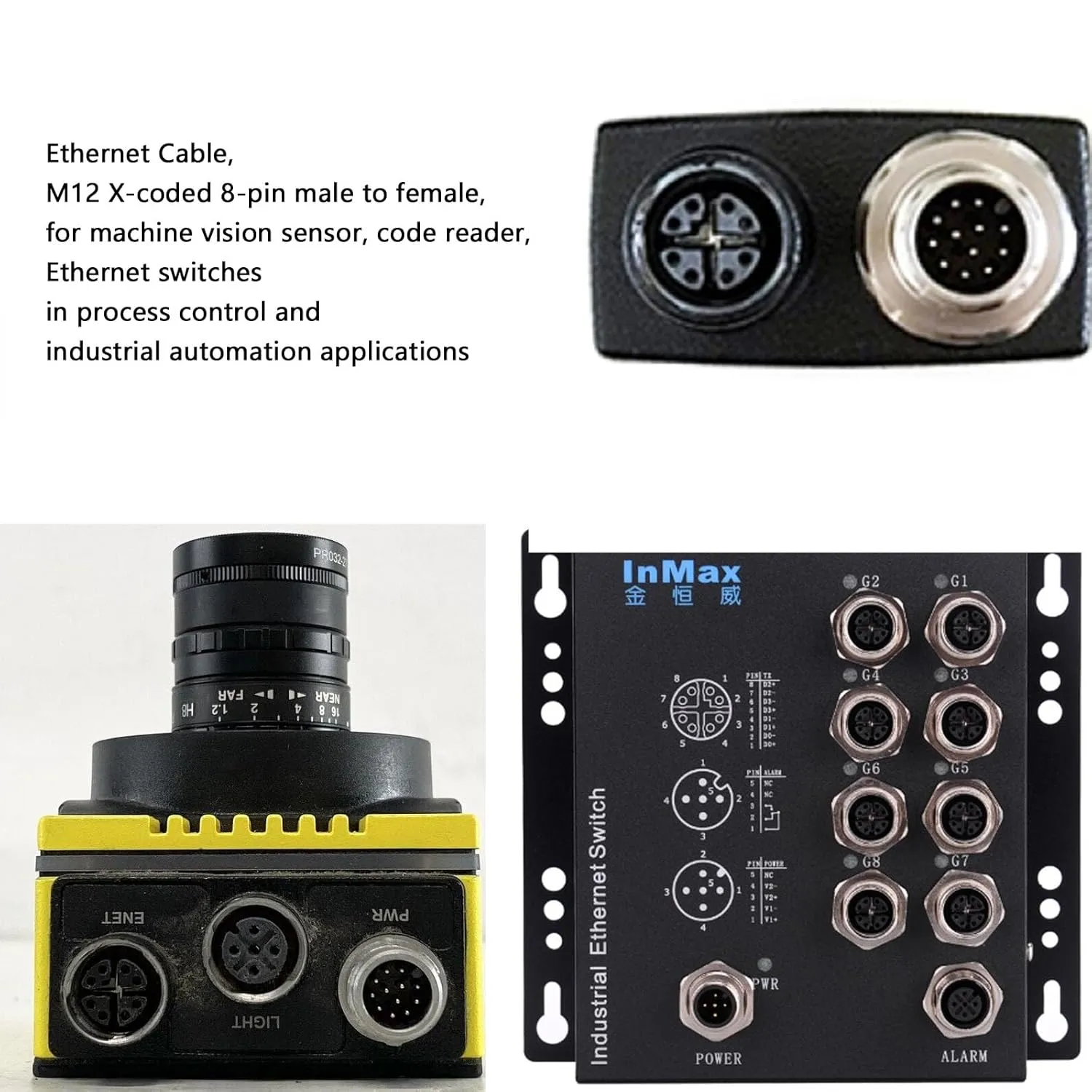

- M12 cable is widely used in machine vision image sensor camera system, bar code scanner reader, actuator, encoder, industrial Ethernet switches bridge, EtherCAT, network, railway application, outdoor LED display, industrial automation control, I/O module, servo, motor, robot, fieldbus, EtherNet/IP, profinet, smart transportation system, router, PC host computers, PLC, process control, PoE injector power

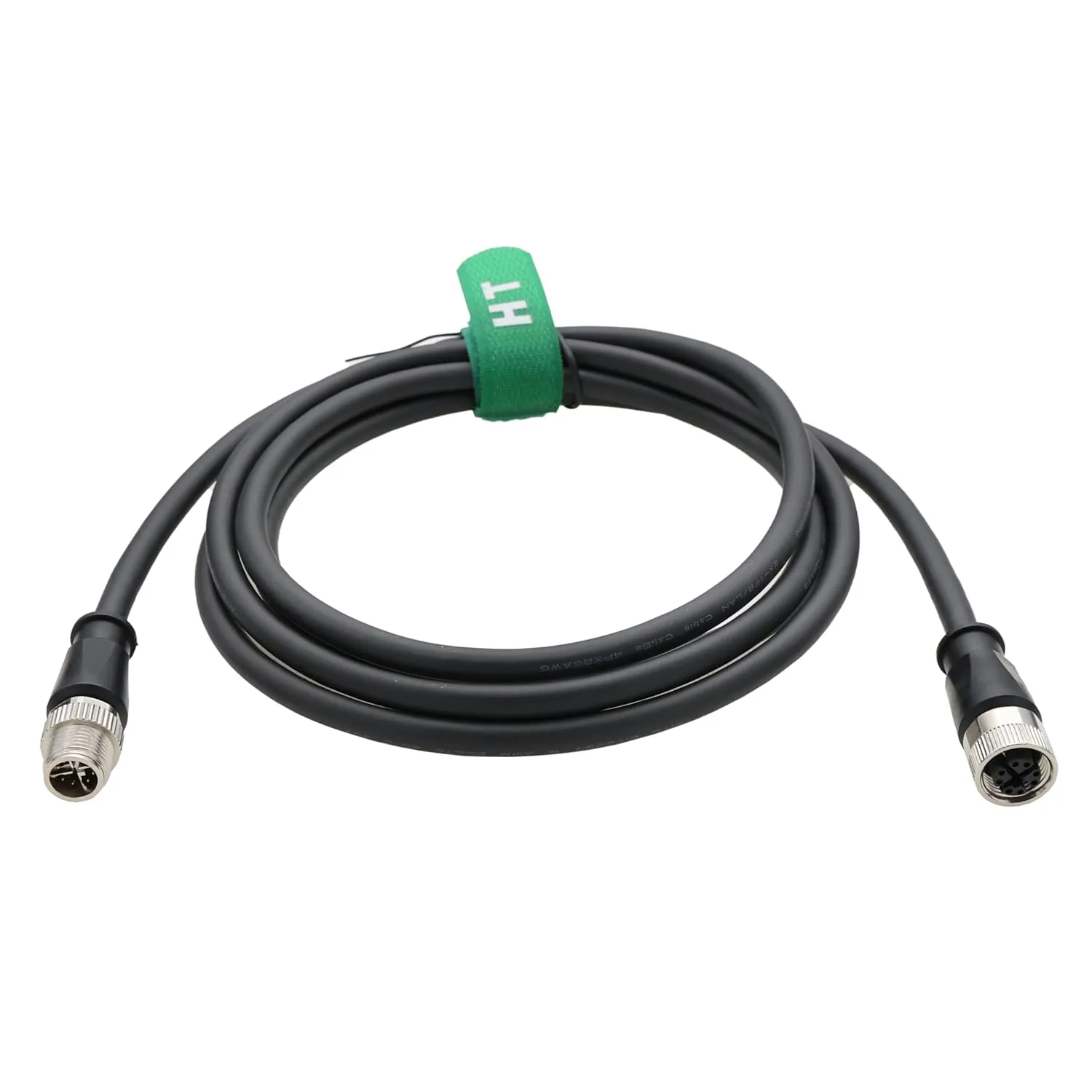

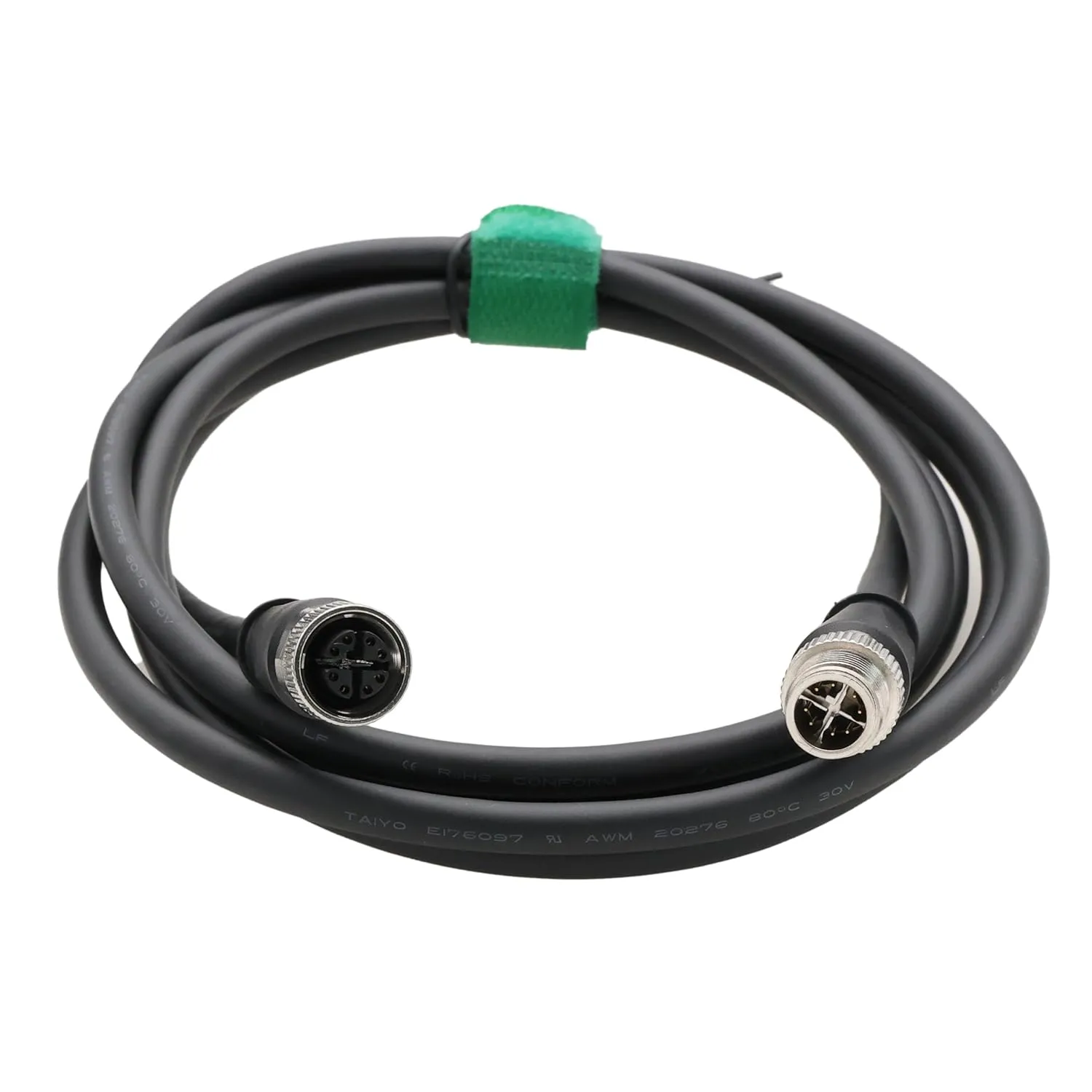

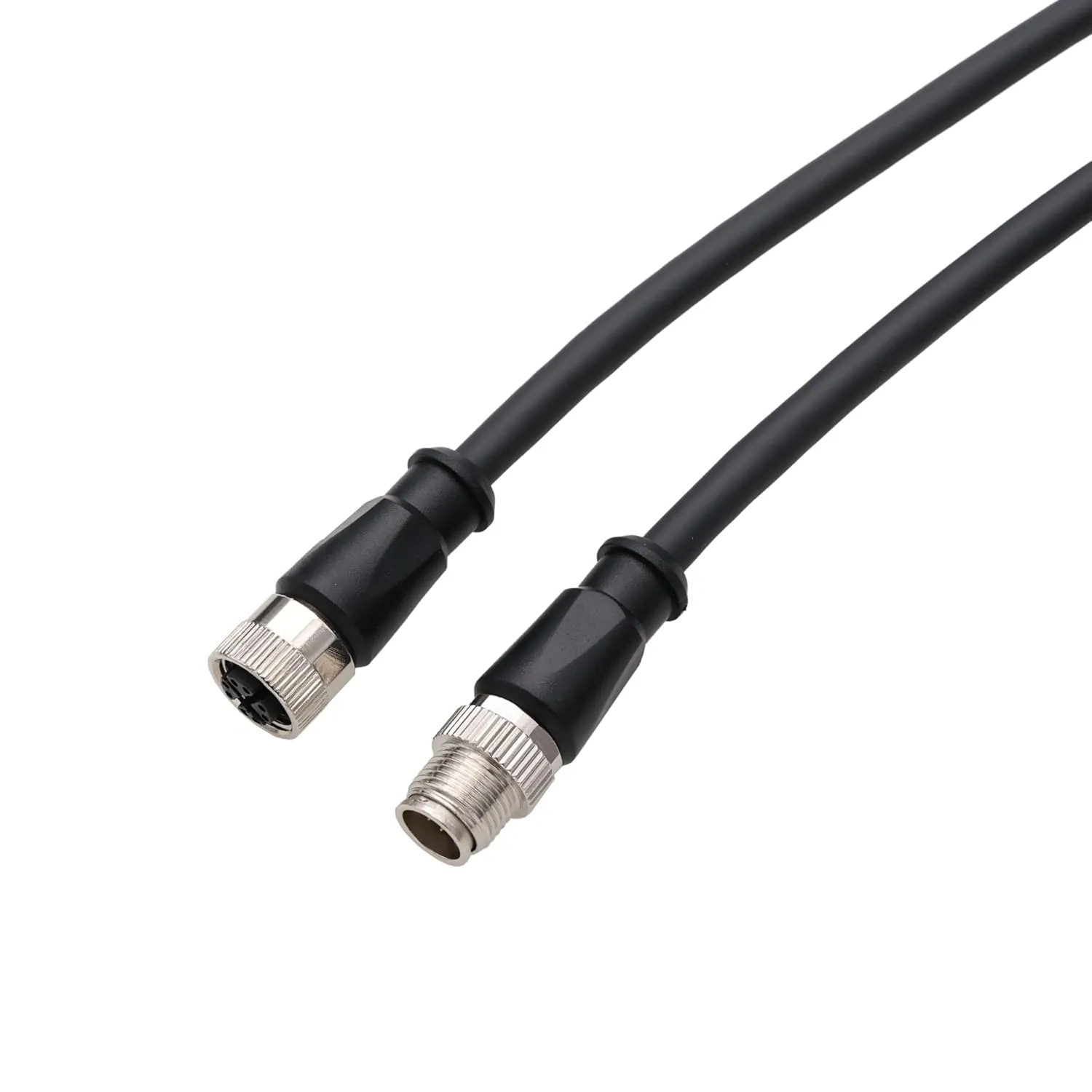

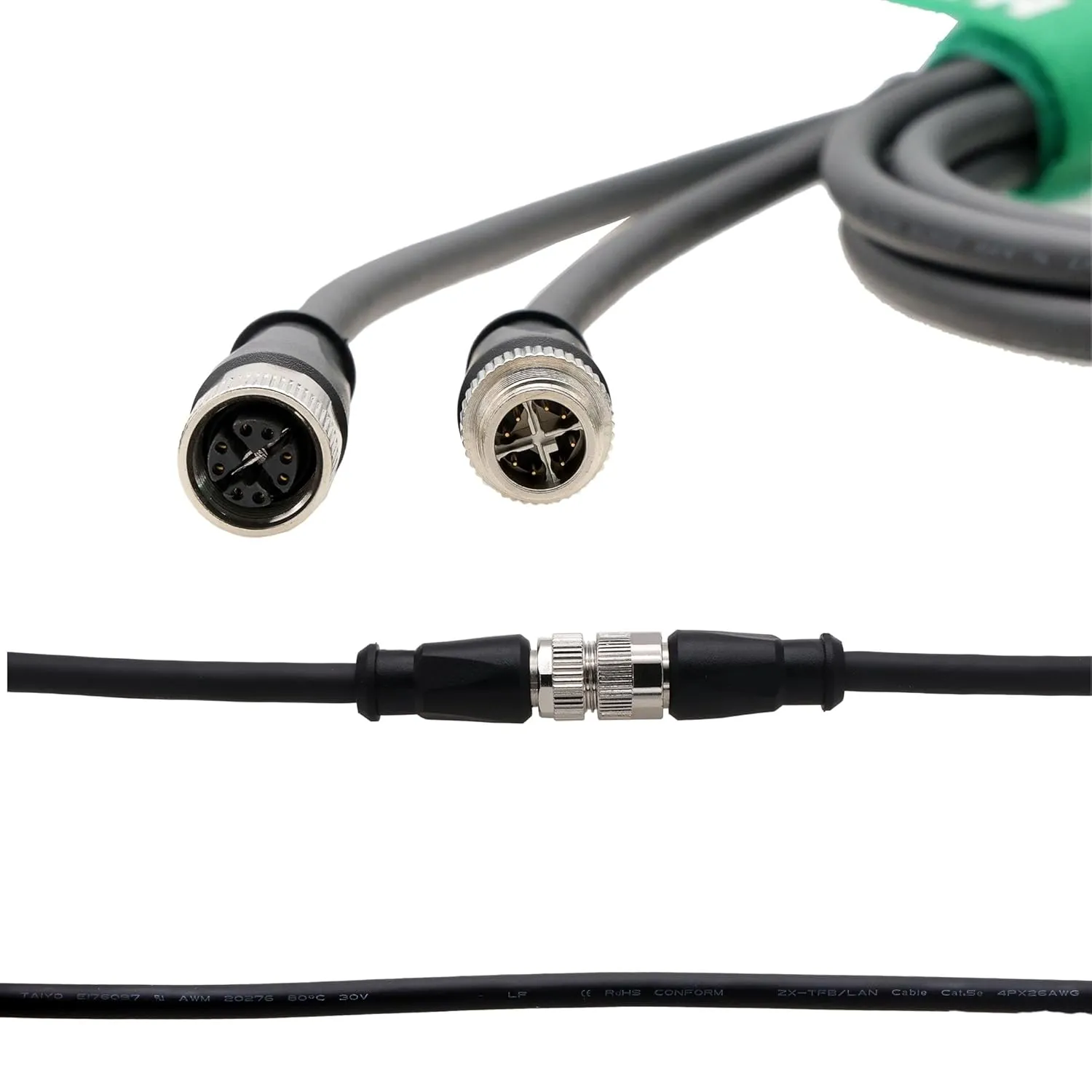

- 1 meter / 3.28ft cable length. M12 X-coded 8-pin male to X-coding 8-pin female connectors with threaded locking, anti-vibration
- Data transmission up to 10Gbps, High speed Gigabit Ethernet network Cat.7e cable. Multi-layer aluminum foil braid shield, cotton wire filling, twisted pair, PVC
The cable can effectively avoid electromagnetic interference signals, and can transmit data high speed and stability, up to 10 Gbps. The cable is resistant to abrasion, oil and dirt, bending, flame retardant, highly flexible, stretch resistant, UV resistant, waterproof dust-proof IP67 and can be used in drag chains and harsh industrial environments.
Oxygen-free copper gold-plated contacts, overmolded plug. It is rugged, durable, anti vibration and anti mechanical shock, EMI-resistant, stable and high-speed signal transmission. Metal housing (with shielding) can be shielded from EMI/RFI interference in all directions, and meet the IP67 level of dust and water resistance standards
- Product Dimensions : 2 x 2 x 2 inches; 3.53 ounces
- Date First Available : October 29, 2024
- Manufacturer : HangTon Connect
