Description:

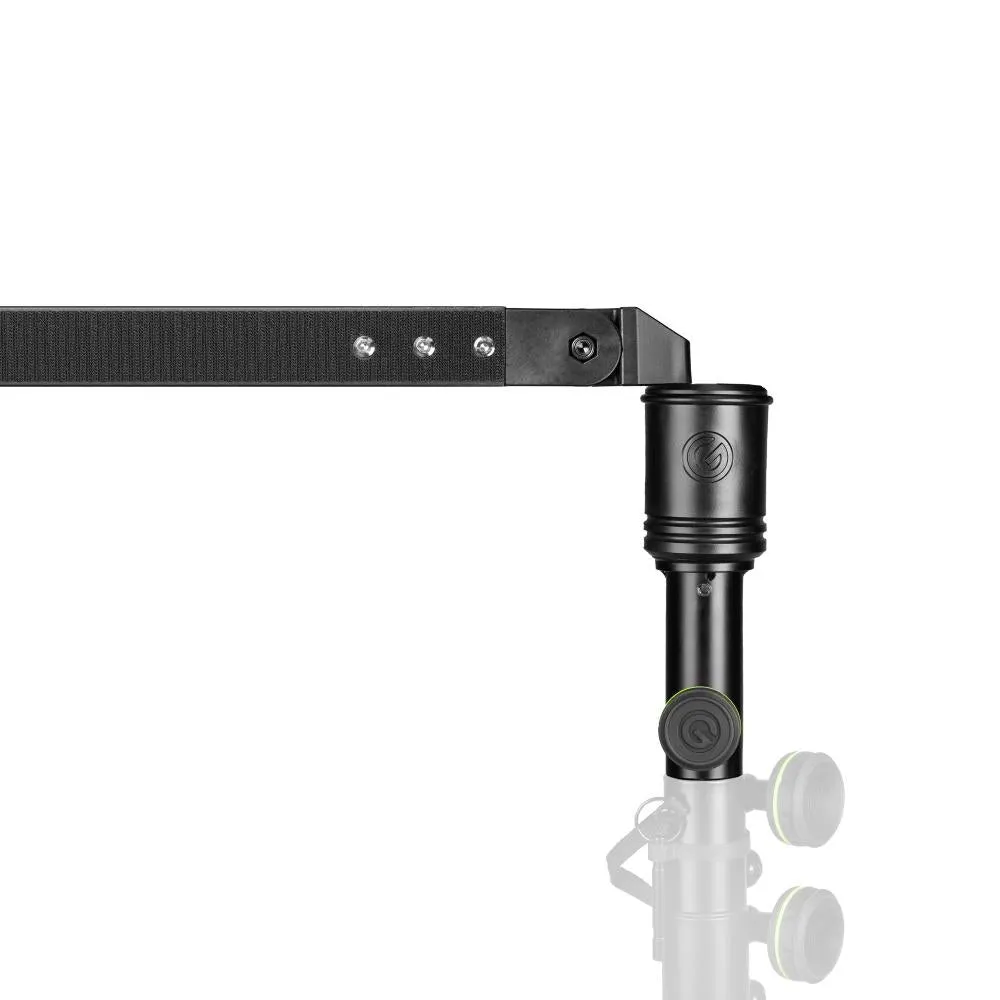

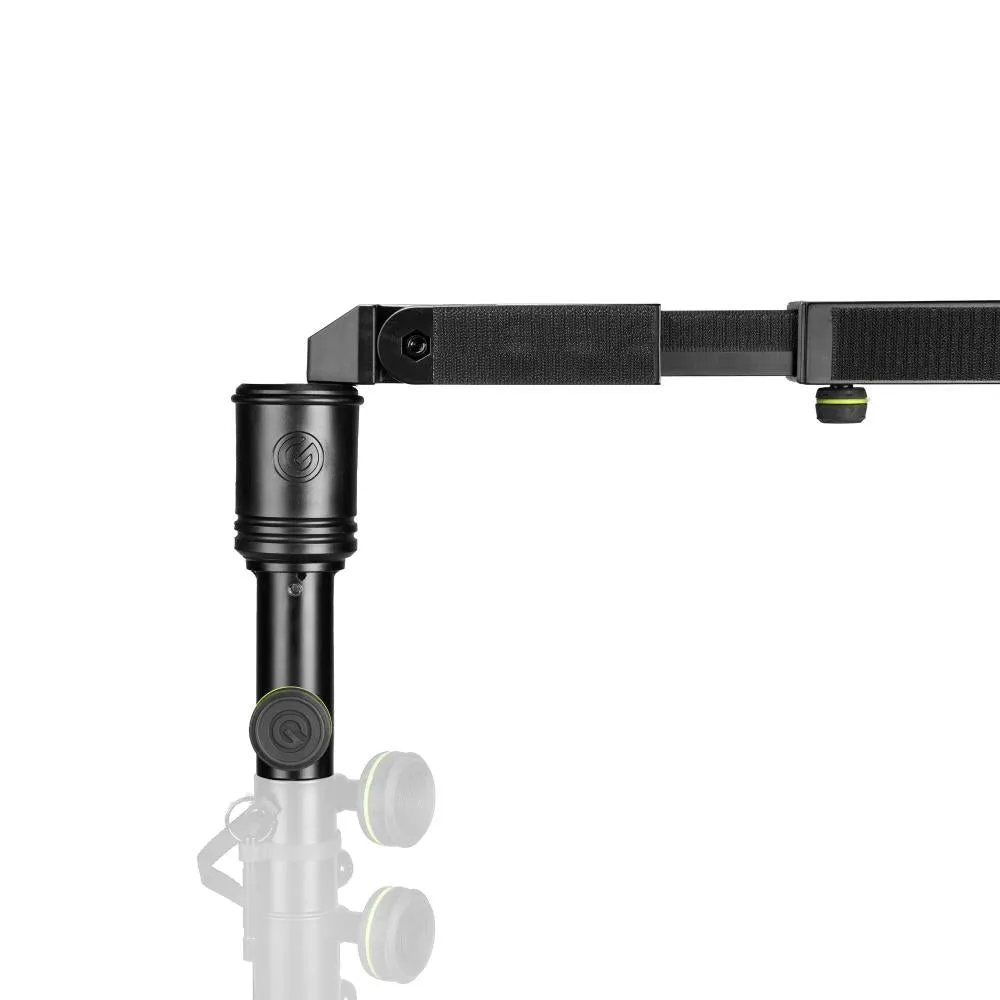

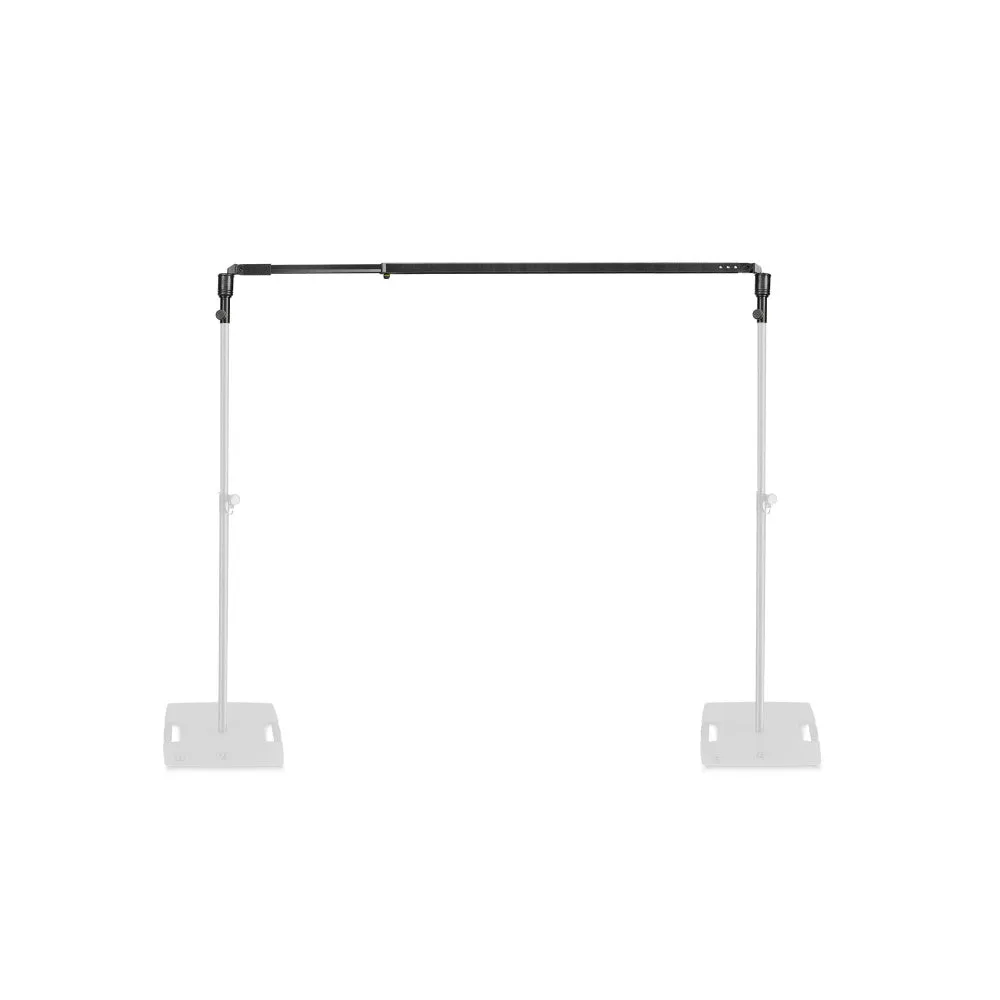

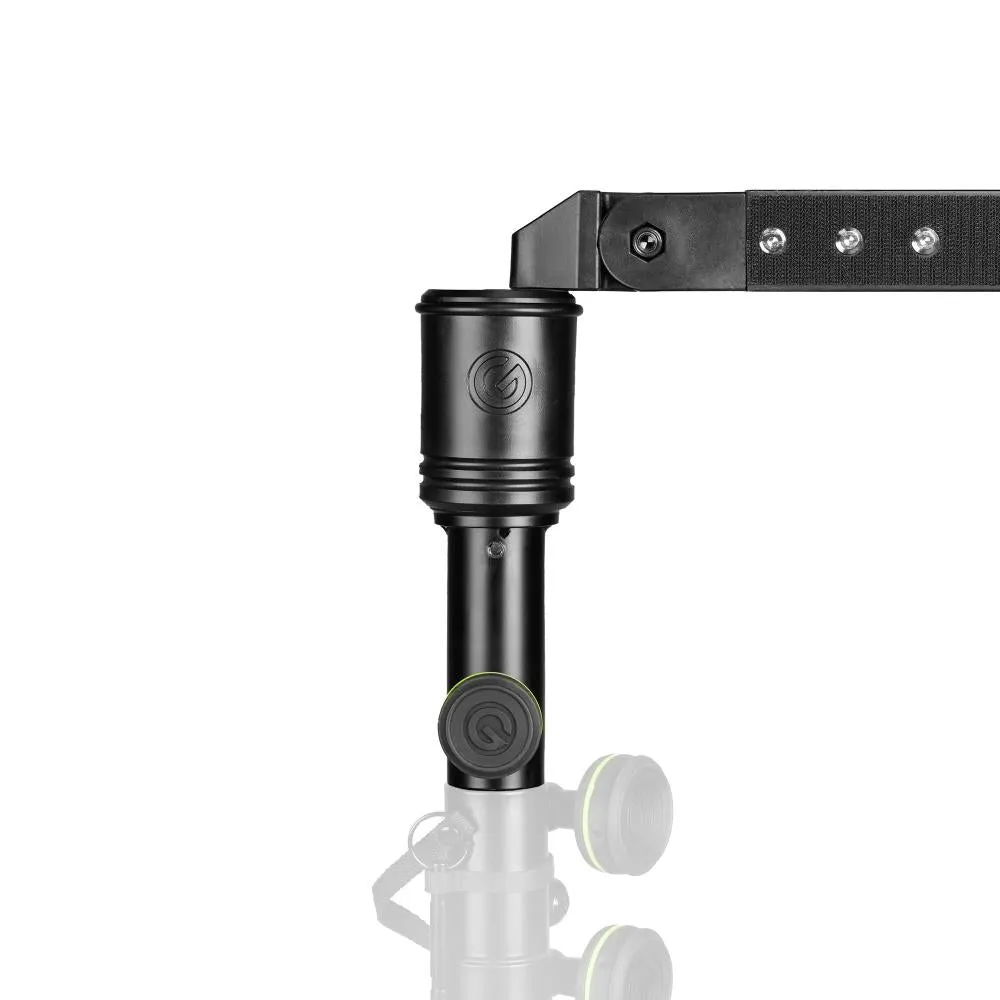

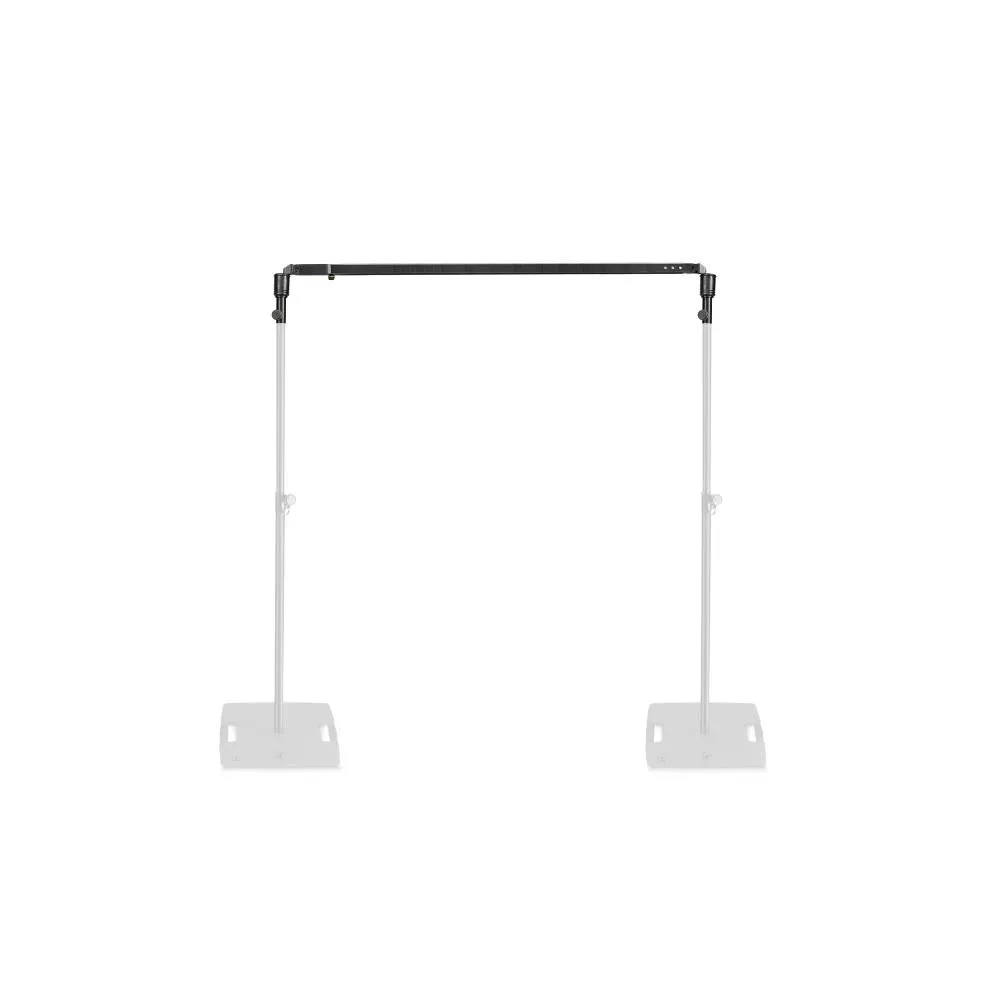

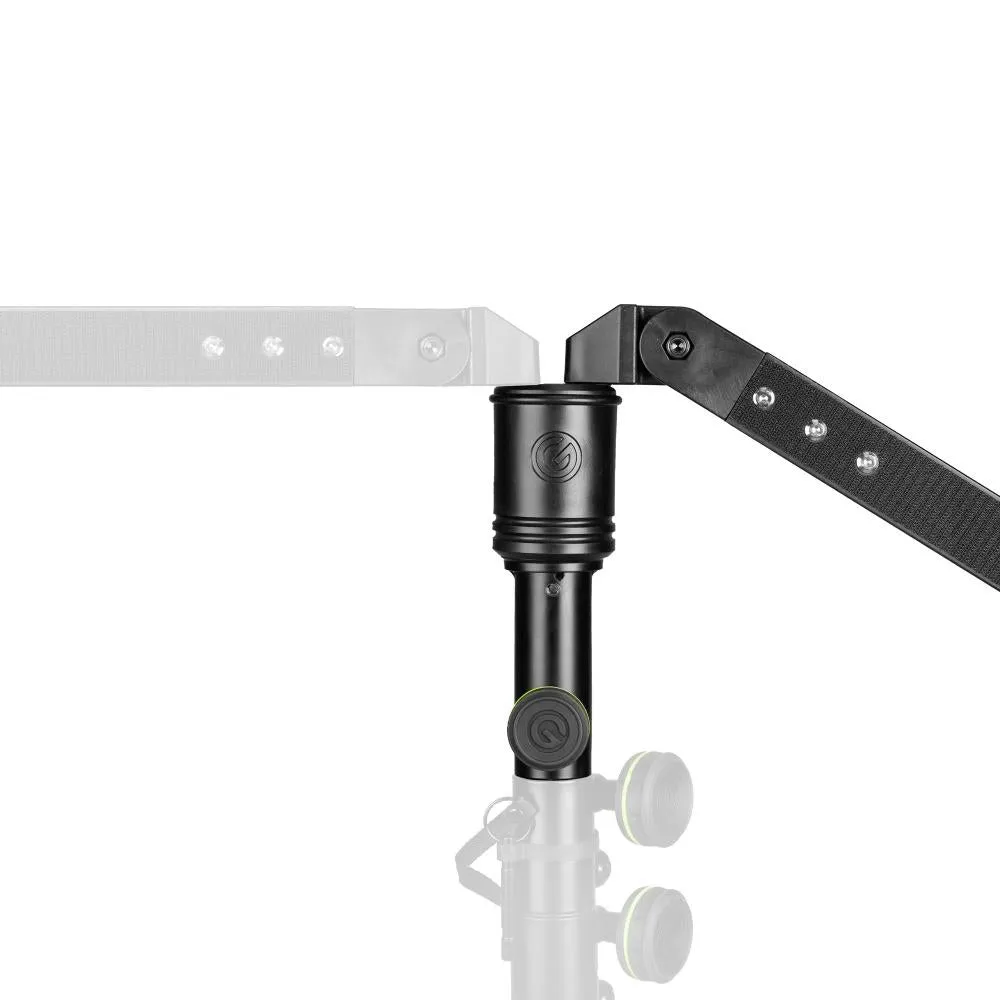

The Gravity® Pipe and Drape curtain system offers an innovative solution for musicians, bands, event technicians, theatres, exhibitors and stand builders. It enables swift and efficient room structuring, area partitioning, wall suspension, or walkway delineation. Utilising the PAD SET 1, consisting of the PAD A adapter and the PAD T telescopic pole, standard speaker or lighting stands with 35 mm mounts can seamlessly transform into comprehensive pipe and drape setups with minimal effort. Simply place the PAD A on to the stand and attach the telescopic pole by inserting its mounting bolts into the adapter's holes. An optional Molton curtain can later be effortlessly affixed to the crossbar.

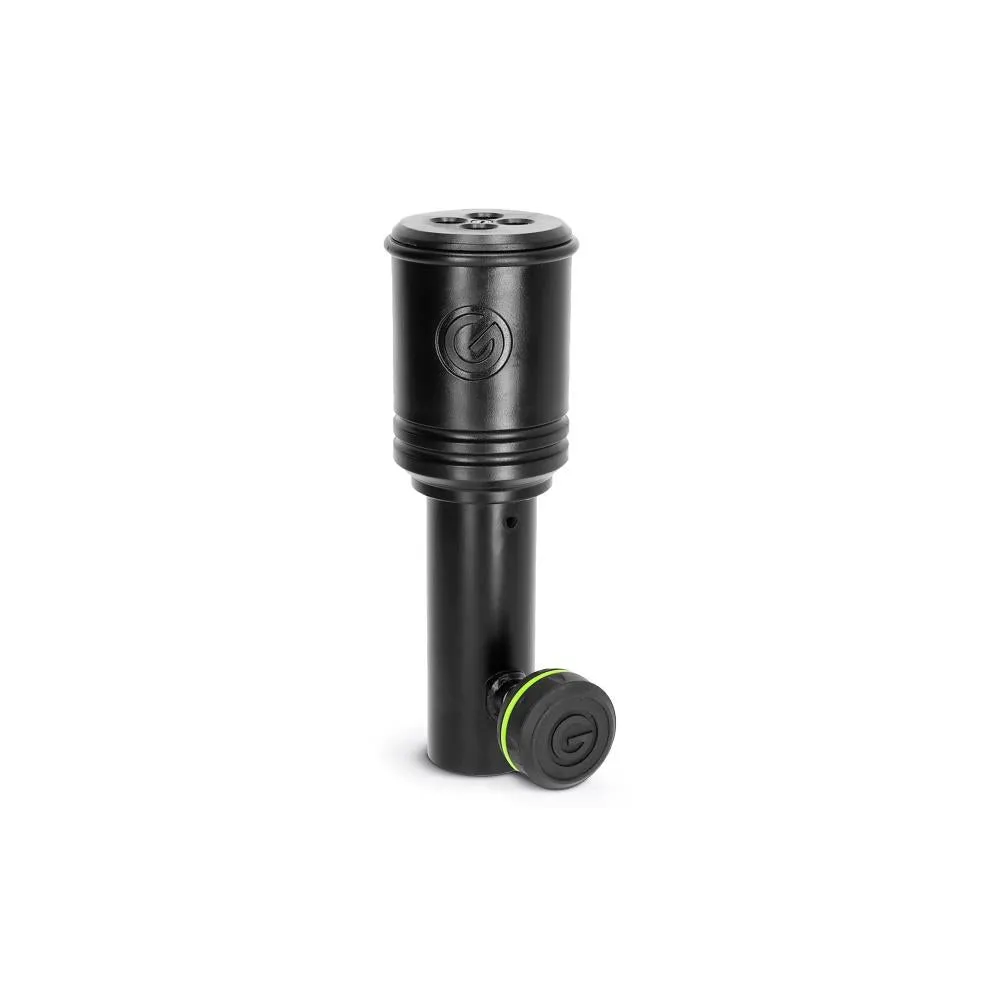

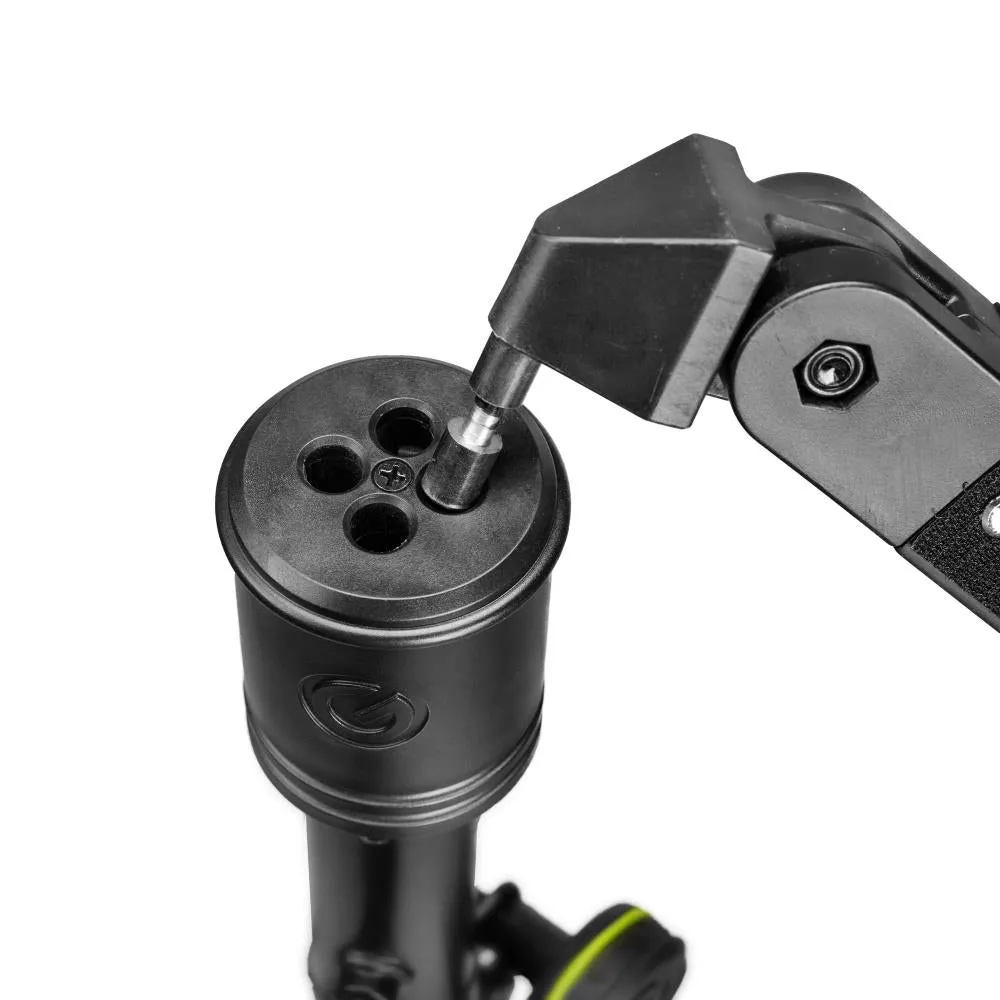

Constructed from steel and plastic, the PAD A features an internal diameter of 36 mm, perfectly suited for accommodating a 35 mm stand. It boasts four fixing holes on the top, enabling the mounting of up to four PAD T telescopic poles. With its convenient snap-in function for securing the telescopic pole mounting bolts, users can effortlessly and securely lock the poles in place in a matter of seconds.

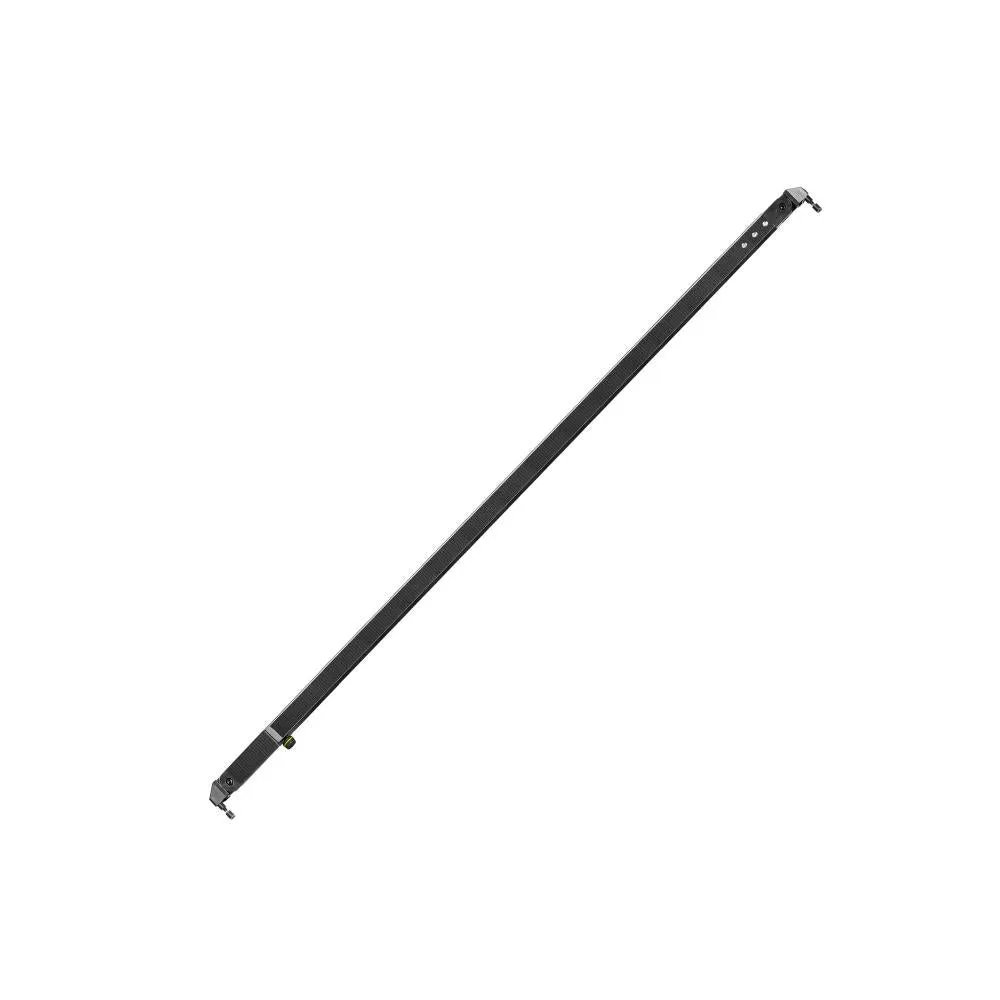

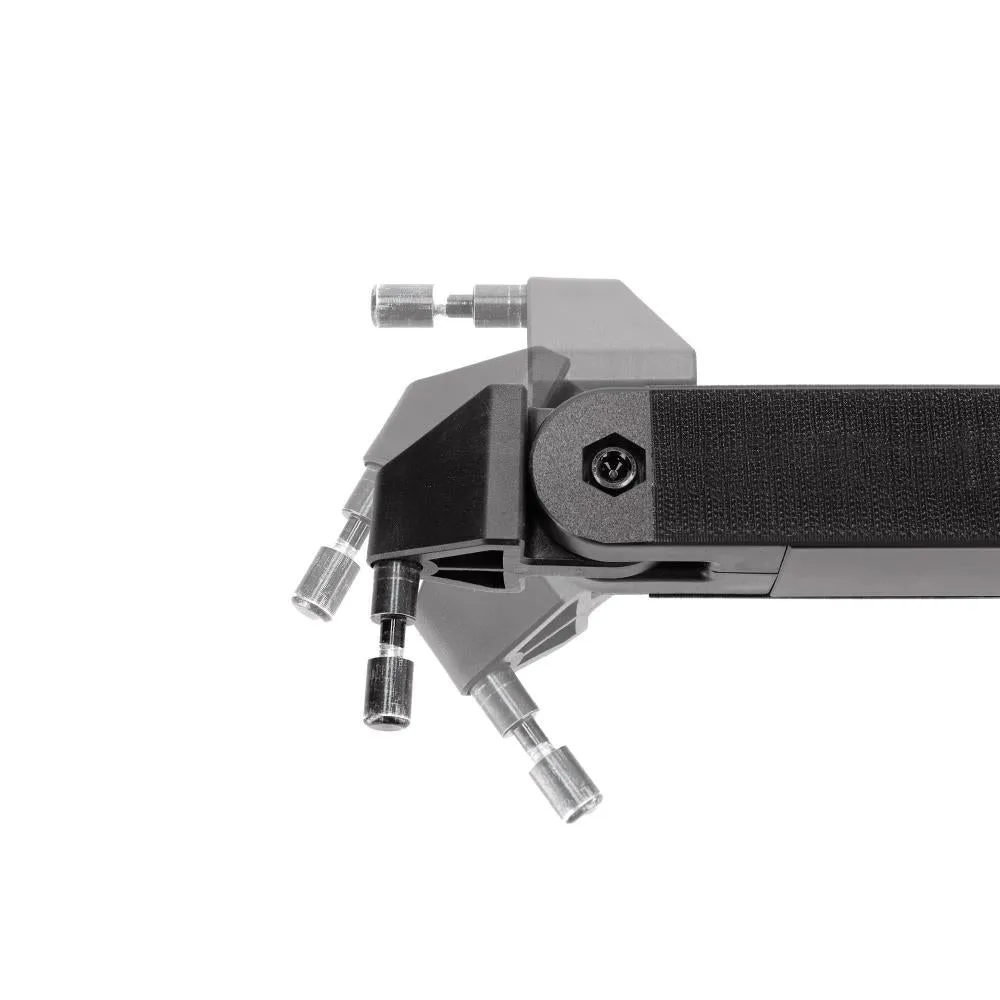

Crafted from aluminium, the PAD T telescopic pole extends from 1.90 m to 3.50 m, enabling customisable system widths. Featuring tilt joints at both ends, the pole facilitates straightforward and adaptable assembly without requiring a ladder or assistance from others. For the attachment of the optional Molton curtain (PAD C B 1), the pole boasts a Velcro strip spanning its entire width.

The Gravity® Pipe and Drape curtain system offers maximum flexibility and adaptability, seamlessly integrating with standard 35 mm stands, offering individual width and height adjustments, the ability to accommodate up to four telescopic poles per adapter as well as facilitating solo setup without the need for a ladder. Whether it’s for small events or expansive trade shows, this system effortlessly conforms to your unique specifications.

Features:

Suitable for all common tripods with 35 mm rods
Practical snap-in function for telescopic pole with unlocking mechanism
Up to 4 telescopic poles per adapter
Adjustable length from 1900 mm to 3500 mm
Easy assembly without the need for a ladder or additional assistance
Equipped with a Velcro strip for attaching optional Molton curtain

Specifications:

General
Product type: Stands and Tripod Accessories
Type: Pipe and Drape
Weight: 4,6 kg

Items in this set
Gravity PAD T Horizontal telescopic pole for Pipe and Drape curtain system

Product type: Stands and Tripod Accessories
Material: Aluminum/plastic, velcro
Surface: Powder-coated
Color: Black
Maximum length: 3500 mm
Transport length: 1900 mm
Max. load capacity: 20 kg
Weight: 3,65 kg

Gravity PAD A 4-way Pipe and Drape adapter for 35 mm tripods

Product type: Stands and Tripod Accessories
Type: Adapter
Material: Steel/plastic
Suitable for tube diameter: 35 mm
Color: Black
Max. number of pipe fasteners: 4
Weight: 0,625 kg
