Description:

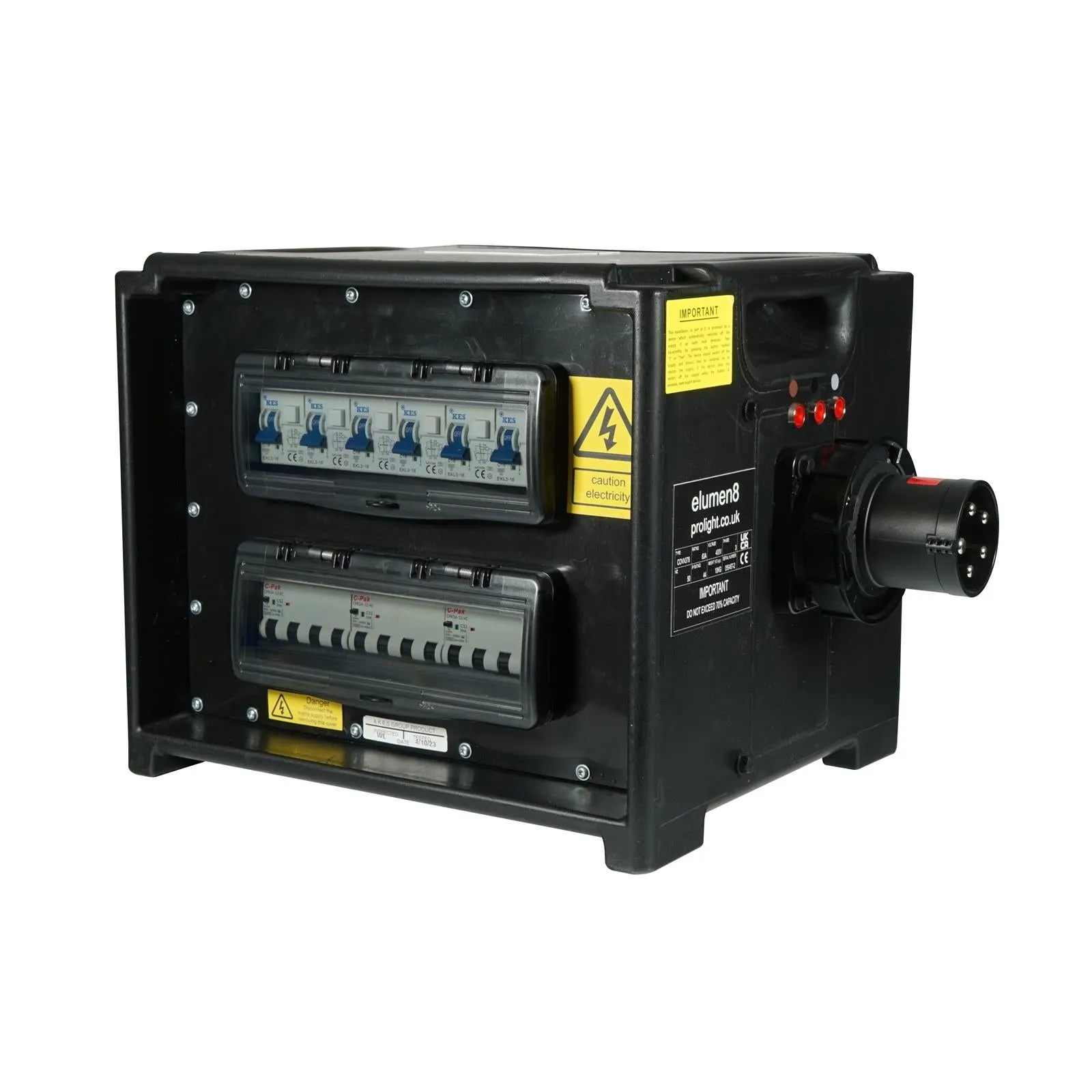

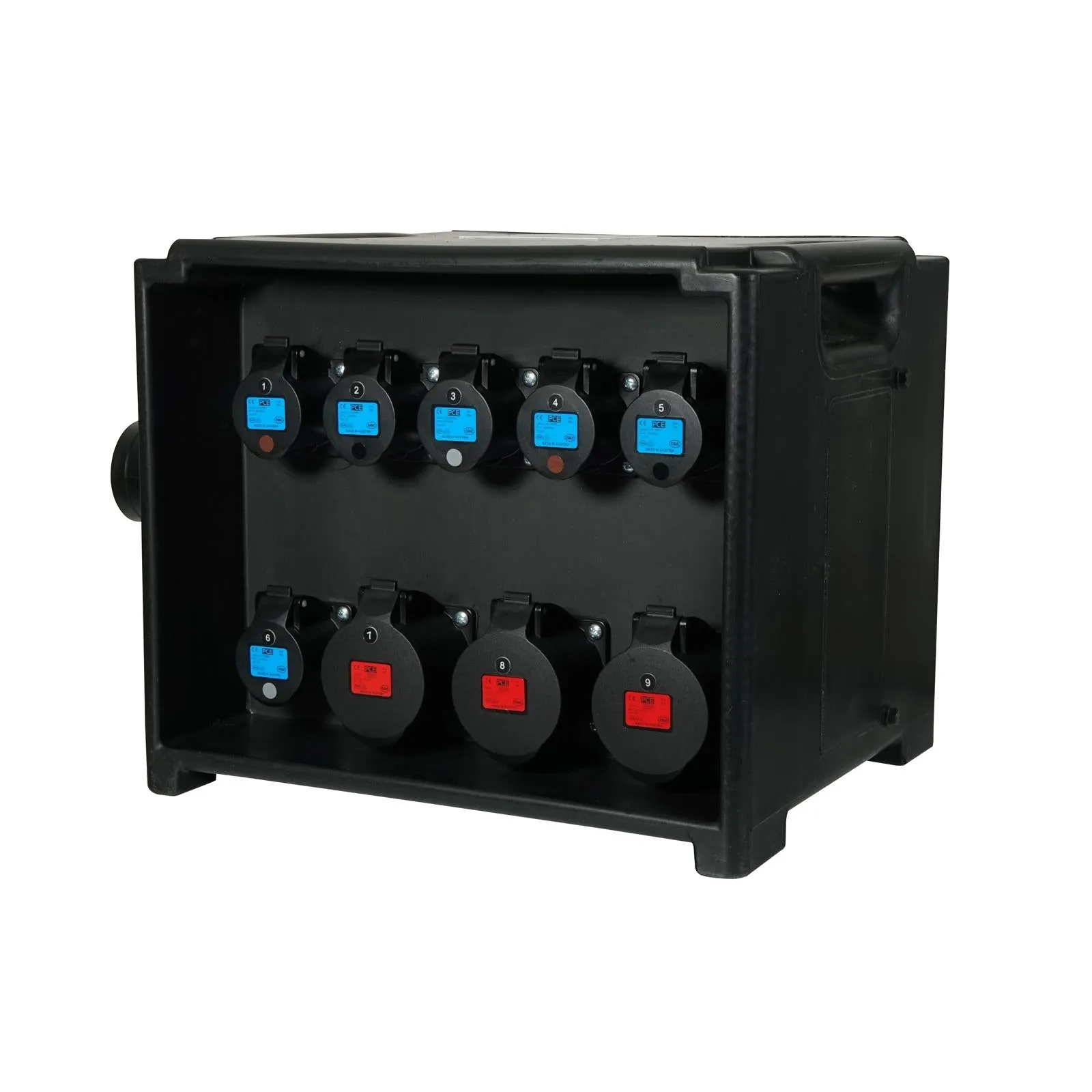

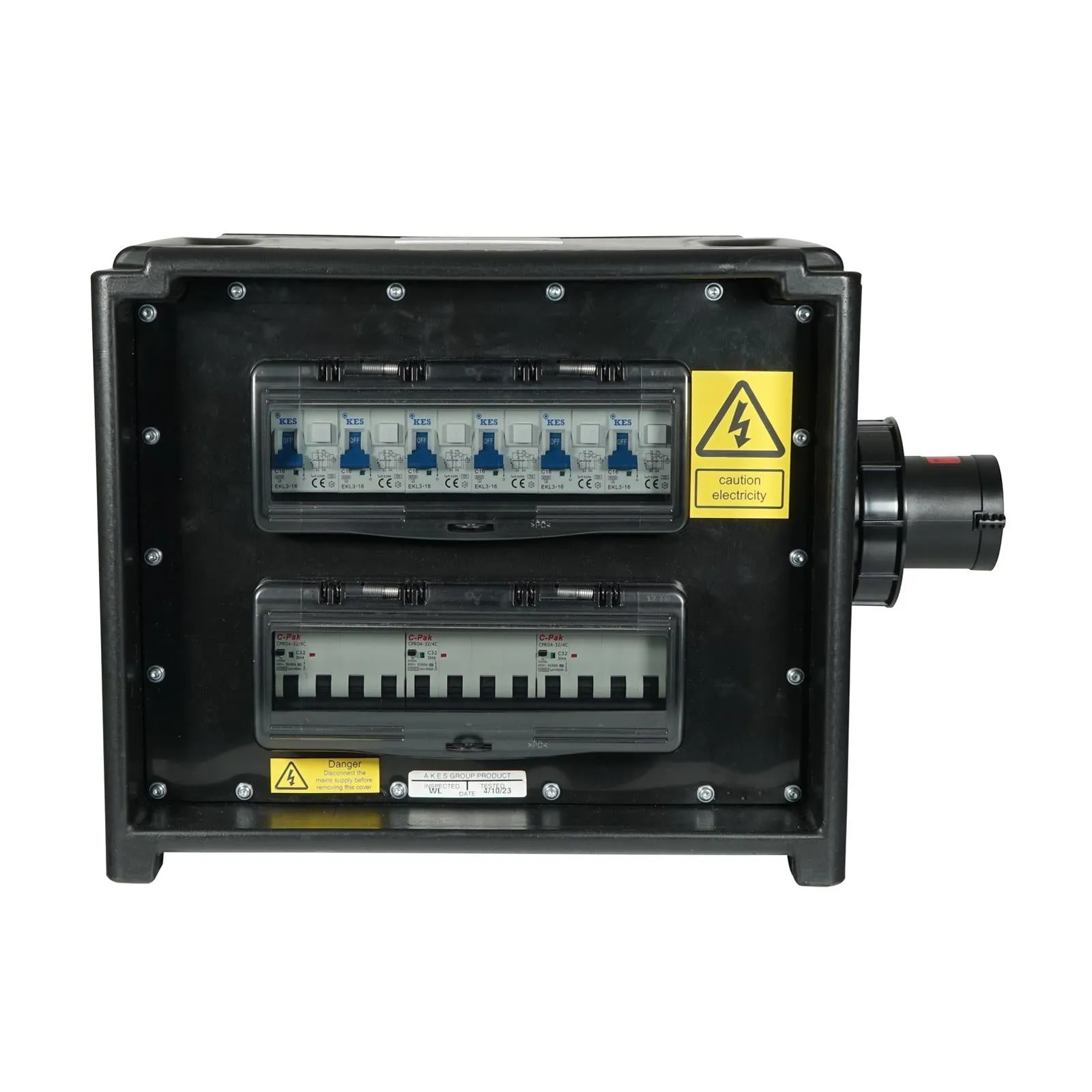

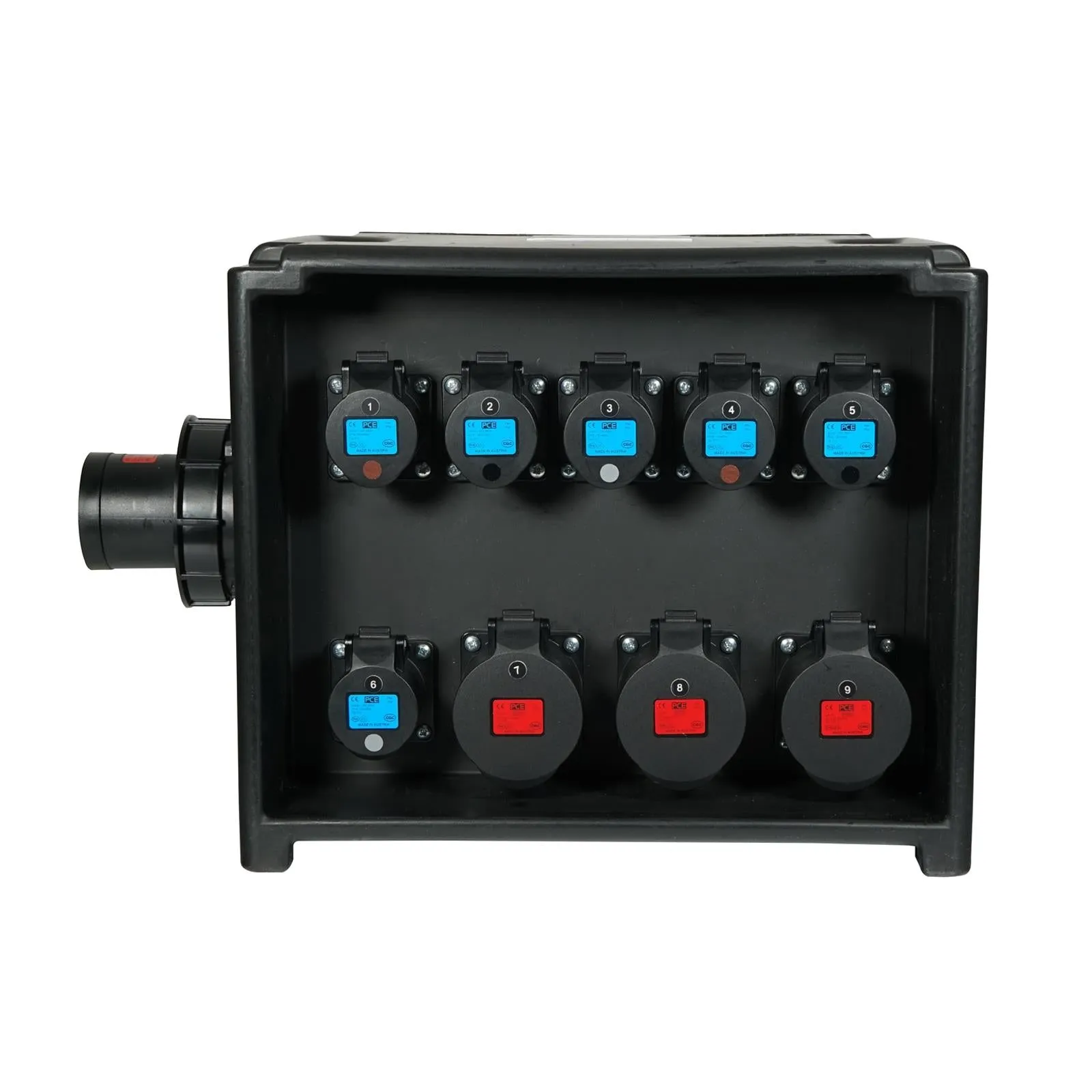

The Elumen8 63A distribution boxes are manufactured using PCE components fitted into a MERZ enclosure creating a robust, lightweight unit made of shock-resistant thermoplastic. Suitable for events and rental they are IP44 splash proof rated. Fitted with PCE Midnight black connectors to allow the distribution unit to blend into stage environments.

Features:

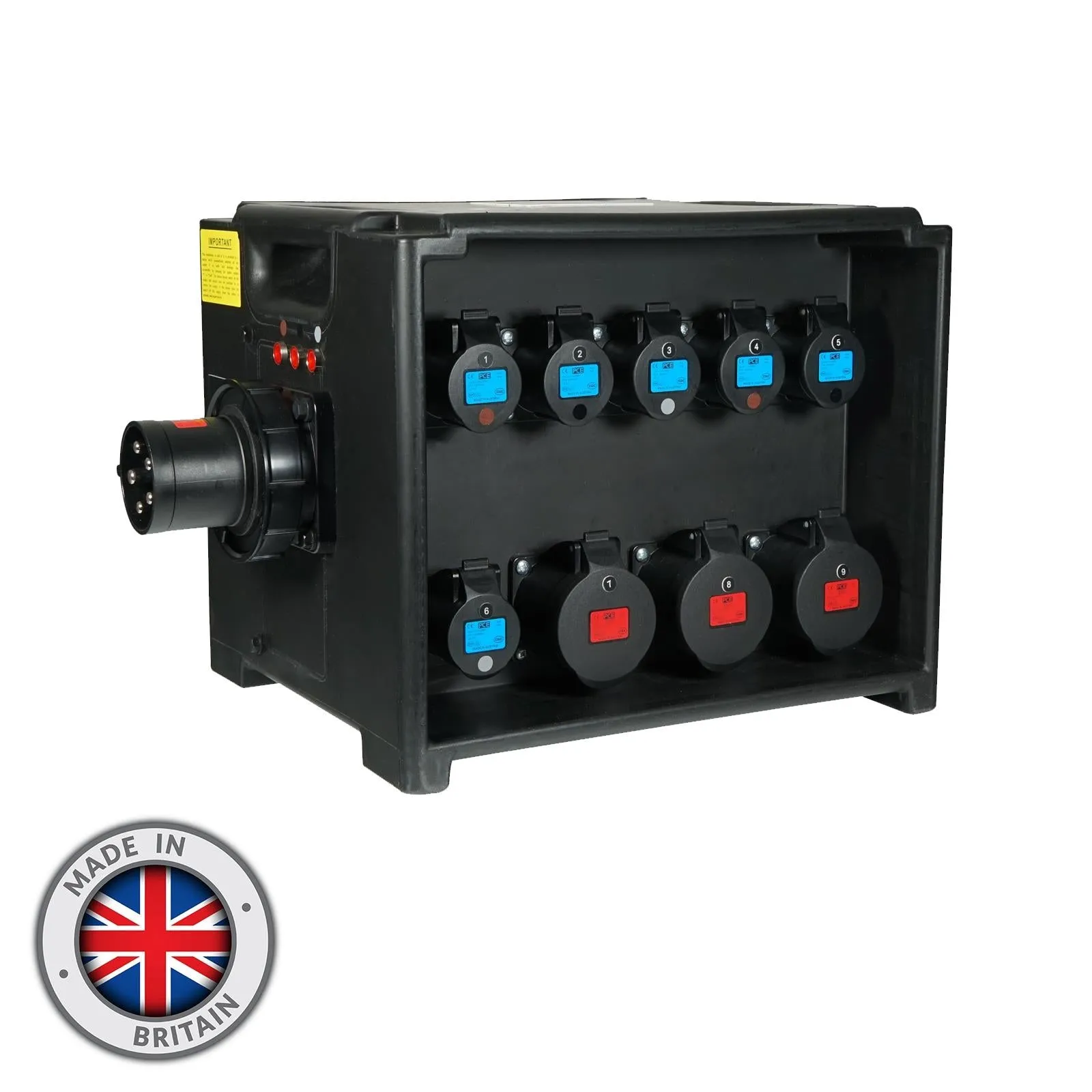

Made in Britain
Handy, robust distribution box made of shock-resistant thermoplastic
IP44 rated
PCE Midnight black connectors
Stackable design for space saving
Neon indicators for visible confirmation of incoming supply

Specifications:

Input: 63A 400V 3P N E IP67 appliance inlet
Outputs: 3 x 32A 415V 3P N E IP44 sockets each protected by 32A 30mA 4-Pole RCBO, 6 x 16A 230V 2P E IP44 sockets each protected by 16A 30mA 2-Pole RCBO
Dimensions (H x W x D): 340 x 520 x 350mm
Weight: 13.5kg
